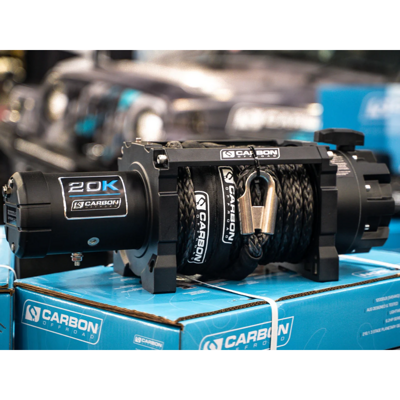

Carbon Offroad Scout Pro 20000 lb Extreme Duty Truck Winch 24V
From $1999
Carbon Offroad Scout Pro 20000 lb Extreme Duty Truck Winch 24V
The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are designed for users who frequently engage in winching activities and face tough offroad conditions. These winches are ideal for those who own heavy vehicles, have heavily equipped vehicles, or engage in towing in offroad environments.
Are you ready to take your offroad adventures to the next level? Look no further than the Carbon Offroad Scout 20K, a powerhouse designed to tackle the toughest challenges with ease. With a massive 20,000 lbs of pulling capacity, the Carbon CW-XD20 is engineered to handle the most demanding tasks. Whether you're hauling heavy trailers, or recovering heavy vehicles or tackling extreme terrain this winch has the power to get you through.
If you own a large offroad vehicle, this is the winch you've been waiting for. With its unmatched power, durability and safety features, it is the perfect tool to conquer any terrain and make your offroad adventures unforgettable.
Benefits & Features
✅Carbon Scout Pro 4x4 winches feature larger gear sets and a powerful 7.0 HP motor
✅Suitable for most larger 4x4 vehicles

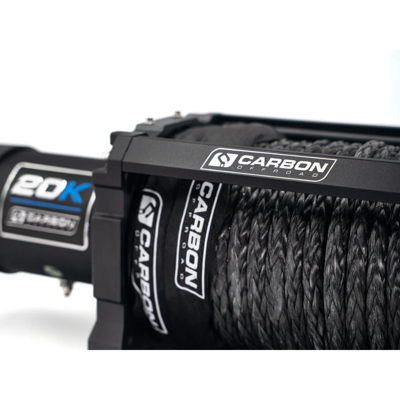

✅13mm Synthetic Rope
✅Improved heavy-duty high-performance
✅Included Carbon Offroad Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
✅345:1 Heavy Duty performance gearbox
Specifications
Part Number: CW-XD20
Rated line pull: 20000 lbs, (9072kg) single-line

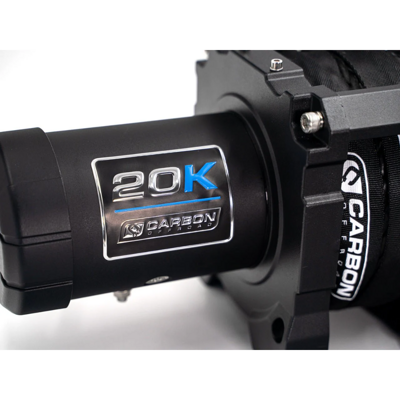

Motor: 12V DC 7 HP series wound motor (24V option available)
Remote Control: Wired with 3.6m lead
Wireless Remote Control: Included
Geartrain: 3-Stage Planetary
Gear Ratio: 345:1
Rotating Ring Gear
Brake: Automatic brake in the motor bracket
Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
Synthetic Rope: 25m x 13mm diameter
Drum Diameter/Length: 88mm x 224mm
Mounting Bolt Pattern: 254mm x 114.3mm
Recommended Battery: 650 CCA minimum for winching
Winch weight with synthetic rope attached: 30kg
Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 37kg
| 12V DC performance specs (first layer of drum) | |||
| Line Pull Lbs.(Kgs.) | Line Speed FT./min(M/min.) | Motor Current | Pull by layer layer/Lbs(Kgs.) |
| 0 | 26.2(8.0) | 70 amps | 1/20,000(9072) |
| 4000 (1814) | 10.8(3.3) | 145 amps | 2/16,140(7321) |
| 8000 (3629) | 8.5(2.6) | 230 amps | 3/13,520(6133) |
| 12000 (5443) | 6.2(1.9) | 310 amps | 4/11,660(5289) |
| 16000 (7257) | 4.6 (1.4) | 390 amps | |
| 20000 (9072) | 3.3(1.0) | 460 amps | |
